Short Communication

The Effect of Various Stabilizers on Preserving Immunogenicity of Lyophilized Mumps Vaccines

Citation: Kamali-Jamil R, Shayestehpour M, Sadigh Z, Taqavian M, Shahkarami M, Esna-Ashari F, Shahbazi R, Mohammadi A, Foroughi A, Romani B. The Effect of Various Stabilizers on Preserving Immunogenicity of Lyophilized Mumps Vaccines. J Res Health Sci. 2017; 17(4): e00393.

Introduction

Chemical stabilizers are added to live attenuated vaccines for enhancing the virus stability ¹ . Main ingredients of these stabilizers are hydrolyzed gelatin, sucrose, sorbitol, and other sugars ^{2, 3} . Stabilizing components can serve as antigen preservatives and increase antibody response to vaccine. For example, application of trehalose in vaccine formulation stimulates a strong immune response ⁴ . The efficacy of live vaccines depends on their ability for immune stimulation and their thermal stability ^{2, 5} . Changing vaccine formulation and increasing vaccine-induced immune response can be applied for production of a more effective vaccine.

Mumps is a viral disease caused by a paramyxovirus responsible for serious health problems, such as meningitis, encephalitis, and infertility ⁶ .Vaccination is the best approach to prevent this infection ⁷ . Immunization against mumps is recommended to all people of 12 months or older ⁸ . Mumps inactivated vaccines are not administrated anymore since they have disadvantages, including requirement for additional dose injection, delay in cellular immunity stimulation and unstable protection ⁶ . Today, live attenuated mumps strains combined with rubella and measles viruses (MMR) produce long-lasting immunity and therefore they are used for vaccination ^{9, 10} . Up to date, more than ten attenuated strains of mumps virus have been used for vaccine production ⁸ . The RS-12 strain of mumps induces a stronger humoral immune response compared to other strains ^{11, 12} . Impact of vaccine stabilizers on induction of antibody response in mumps virus (RS12 strain) has not been well addressed.

In this study, we evaluated the effect of various mumps vaccine formulations of RS-12 strain on producing antibodies in Guinea pigs.

Methods

Mumps vaccine production

We formulated three lyophilized mumps vaccines using the Iranian RS-12 strain and different stabilizers in Razi Vaccine and Serum Research Institute, Karaj, Iran. The formulation and vaccine production process was previously described ² . Formulation 1 contained 0.3 M trehalose dihydrate, 111 mg/ml hydrolyzed gelatin, 8.8 mM KH₂PO₄, 0.5 M sodium glutamate and 40 mM Na₂HPO₄ in water. In formulation 2, we used 1.24 mg/ml human serum albumin, 3.6 mM sucrose, 385 mM sorbitol, 75 mM Na₂HPO₄, 40.2 mg/ml hydrolyzed gelatin, 10 mM sodium bicarbonate and 87 mM NaCl in water. Formulation 3 contained a gelatin-based stabilizer was provided by the Razi Vaccine and Serum Research Institute. All stabilizers were filter sterilized and mixed 1:1 with the harvested mumps virus. Vaccines were lyophilized using the standard lyophilization procedure.

The study was approved by the Ethics Committee of Razi Vaccine and Serum Research Institute, Alborz, Iran.

Vaccine injection to Guinea pigs and blood collection

We provided 26 male Guinea pigs (Per Bright short hair), weighing 250-350gr, from the Department of Laboratory Animals in Razi Institute of Iran, Karaj, Iran. Animals were divided into four groups. Three groups, each comprising 6 subjects, were allocated for inoculation of three different vaccine formulations and one group (8 Guinea pigs) was used as control. Five hundred microliter of each reconstituted mumps vaccine (only DMEM for the control group) was injected subcutaneously in the animal's right flank. A booster dose was injected to animals after two weeks. Blood samples were collected before inoculation and on 14, 28 and 42 d after vaccine injection.

Hemagglutination Inhibition Assay (HAI test)

Mumps hemagglutination (HA) antigen with titer 1:32 was obtained from Razi Institute of Iran. Mumps antigen titration was performed using hemagglutination test and Guinea pig red blood cells in two-fold serial dilutions for providing 4-unit mumps antigen. Serum samples were inactivated at 56 °C for 30 min and treated with 25% kaolin. The hemagglutination inhibition (HAI) assay was carried out in V-bottom 96 well plates. Twenty-five microliters of PBS containing 1% albumin were added to each well. Then, 25 ul of 2-fold serial dilutions of the serum samples and 25 µl of 4-unit mumps antigen was added to all wells. Micro plates were shaken and incubated for 1 h at 37 °C. Then, 50 ul of Guinea pig RBC (0.5%) was added to all wells and plates were incubated for 2 h at 37 °C with shaking. All wells were observed for agglutination. A jagged shield of red blood cells or an irregular button indicates agglutination. The HAI titer of each serum sample was the inverse of the last dilution where cells were not agglutinated.

Statistical Analysis

Student’s 𝑡-test was used to determine significant differences of the data between two groups by GraphPad Prism 6.0 software. A P value of lower than 0.05 was considered statistically significant.

Results

Twenty-six Guinea pigs serum samples were treated and tested by HAI technique for measuring mumps antibody. In the control group, we did not observe a significant antibody titer (data not shown). The antibody titer on day 14 post-vaccination, before booster inoculation, for vaccine formulation 2 and gelatin-based vaccine was very similar. HAI assay results summarized in Figure 1. Titer of mumps antibody for vaccine formulation 1 was slightly higher than that of the gelatin-based vaccine and formulation 2; however, this was not statistically significant. On 28-d post-vaccination, the difference between formulation 1 and the other vaccine formulations became greater so that formulation 1 had stimulated a significantly higher antibody titer compared to the gelatin-based vaccine. On day 42 post-vaccination, the antibody titer was reduced so that no significant difference was observed among the tested subjects.

Close

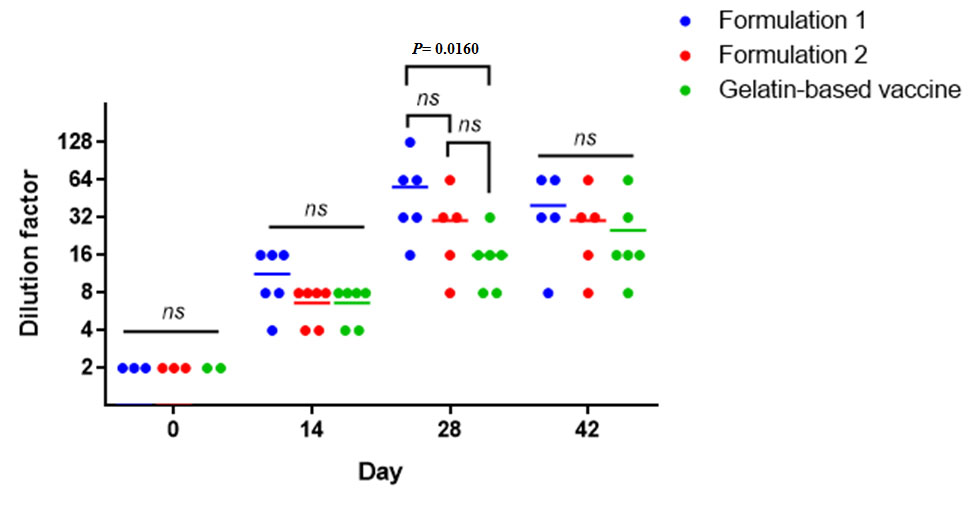

Figure 1.

HAI assay for immunization of Guinea pigs against mumps virus. Guinea pigs were vaccinated with 3 different vaccine formulations. Blood samples were collected on day 0, 14, 28, and 42 and their antibody titers against mumps virus were measured using HAI assays.

Figure 1.

HAI assay for immunization of Guinea pigs against mumps virus. Guinea pigs were vaccinated with 3 different vaccine formulations. Blood samples were collected on day 0, 14, 28, and 42 and their antibody titers against mumps virus were measured using HAI assays.

Discussion

Previous studies have used laboratory animals such as rat, monkey, hamster, and Guinea pig to evaluate immune response against different strains of mumps virus ^11-13 . In the present study, using the RS-12 strain, all HAI tests were positive 14 d post-vaccination. Shramek et al. developed an attenuated mumps vaccine with Barnes, Ricki and pomanti strains administrated to Guinea pigs by either aerosol inhalation or a subcutaneous injection ¹⁴ . Similarly, to the present study, HAI tests were positive for the attenuated strains after two weeks. In another study, the immune response in mice immunized was compared with four attenuated strains of mumps virus, including Urabe, Jeryl Lynn, Rubini, and RS-12. Interestingly, the RS-12 strain induced a better immunization compared to the other strains ¹² . In the present study, all vaccine formulations containing this strain induced efficient immune responses 4 wk postinfection.

Up to date, no published data are available for the effect of various mumps vaccine formulations on stimulating immune response in animals or humans. We found that trehalose dihydrate as stabilizer in formulation 1 induced higher antibody response among three tested vaccine formulations. Addition of trehalose to the influenza vaccine formulation significantly improved preservation of HA activity of viral antigen after drying ⁴ . Trehalose was retained immunogenicity of the virus particles in vaccine after drying process. The use of trehalose as stabilizer significantly improves the stability of measles, mumps and rubella vaccines ^{2, 3, 13} . Trehalose maintained a higher viral titer than human serum albumin and the gelatin-based formulation after freeze drying procedure. Our findings support the previous results for trehalose by showing the best immunogenicity for formulation 1. Formulation 2 contained human serum albumin as stabilizer. Previous studies have demonstrated the role of HSA in virus stability for vaccine production ^{15, 16} . In the present study, formulation 2 stimulated immune response to an extent that was not significantly higher than the stimulation by gelatin-based formulation.

The limitation of this study was the death of some Guinea pigs before the last blood sampling.

Conclusions

Various stabilizers have different preservation potencies that differently affect immune response against virus. More stable and more immunogenic vaccines could be produced using different stabilizers such as trehalose dihydrate. We recommend comparing the immunogenicity of three different mumps-containing formulations in human.

Conflict of interest statement

The authors declare that there is no conflict of interest.

Funding

Financial support for this research has been provided by Razi Vaccine and Serum Research Institute.

Highlights
